Turntable Systems

TURNTABLE SYSTEMS

Another material handling option offered by Thermex-Thermatron are Turntable Systems. Turntable Systems are used in conjunction with our RF and Industrial Press Systems. Thermex-Thermatron Turntable Systems allow you to utilize labor in a faster, more efficient production cycle. They have been designed to give you complete control high-speed production with reduced loading time. Our Turntable Systems have the smooth operation and trouble-free use you expect from the most experienced high frequency equipment manufacturer in the world.

Thermex-Thermatron Material Handling Systems feature electrical-mechanical automatic rotary turntables for versatile higher speed and higher volume production requirements. Our Turntable Systems are customizable with the number of stations and the width of the turntable. The stations on the Turntable are used for the installation of the welding tool(s) or nest and for loading and unloading the materials to be welded.

Proudly made in the U.S.A.

Click to see the Product Technical Specification section.

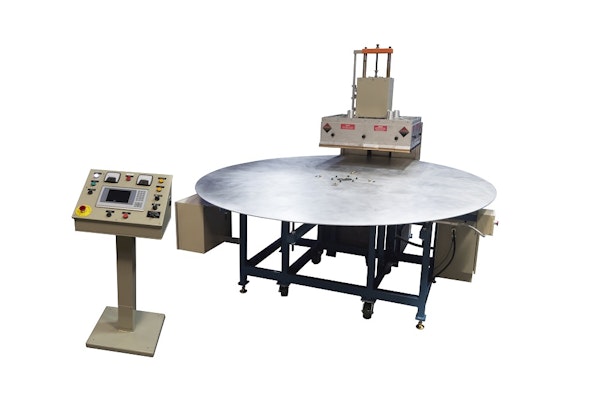

Kf62 With Tt And Plc Resized
COMMON USES:

Thermex-Thermatron Material Handling Turntable Systems allow manufacturers to utilize labor in a faster, more efficient production cycle.  Our Turntable Systems have been designed to give you complete control, high-speed production with reduced loading time, plus the smooth operation and trouble-free use you expect from the most experienced high frequency equipment manufacturer in the world.



APPLICATIONS INCLUDE:
  • Medical straps and inflatables such as cushions and mattresses
  • Automotive airbag sensors, seat heater and cooling bladders
  • Clamshell and blister packaging
FEATURES:
  • Electrical-mechanical automatic rotary turntable for versatile higher speed, higher volume production requirements
  • Adaptable to all Thermex-Thermatron RF and industrial press systems
  • Rugged cam roller and follower index mechanism
  • Special cam design for highest speed with smooth acceleration and deceleration
  • Turntable controls operate in conjunction with sealing equipment to set production rate
  • System paces operators instead of operators controlling cycle rates
  • Reduced material loading time by utilizing additional operators at available loading stations
  • Automatic skip station bypasses blank stations
  • Safety features include an interlocked press circuit and interlocked turntable circuit
Material Handling Turntable Brochure Pic

Product Technical Specifications for the Turntable Systems

Thermex Strip 01

Terminology

Material Handling Systems – Material Handling Systems enable operators to move the material more efficiently being heat sealed through the welding process.  Material Handling Systems include turntables, indexing systems, nip roller indexing systems, and various shuttle configurations such as frontload, side, and side by side.
