Laboratory/Pilot Microwave Systems

LABORATORY/PILOT MICROWAVE SYSTEMS

The Thermex Laboratory/Pilot Microwave System is designed to bridge the gap between small bench top ovens and production systems. The system is a complete self-contained microwave source used for industrial, laboratory and pilot heating processes.

Thermex Engineers have designed the MW System to allow the researcher to test larger samples under controlled conditions and develop a database of information. The ability to establish consistent and reproducible test data provides the confidence that is important for establishing the groundwork for a successful manufacturing process.

The unique features of this system coupled with the PLC controls yield the ultimate in material testing, data acquisition, trending and process development.

Click to see the Product Technical Specification section.

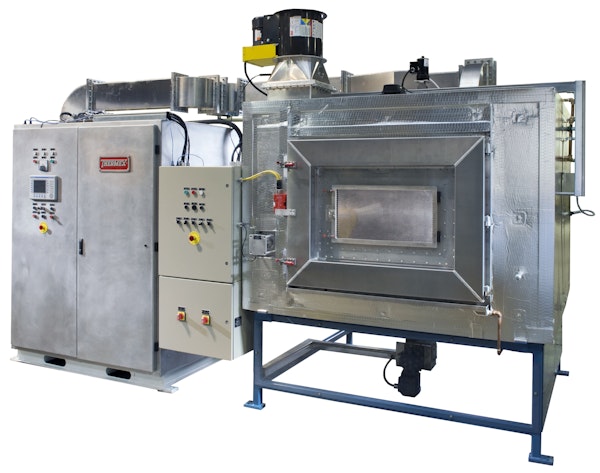

100kw Generator With Batch Applicator
COMMON USES:

Drying | Curing | Tempering | Baking | Laboratory Research and Development

APPLICATIONS INCLUDE:
  • Ceramics
  • Catalysts
  • Composites
  • Bulk fibrous components
  • Sand cores
  • Research & development
  • General drying and heating of electrically non-conductive materials
FEATURES:
  • Continuous power output available of 6kW, 15kW, 75kW or 100kW
  • Ethernet connectivity
  • All major components are water cooled
  • NEMA 12 type enclosed generator cabinet
  • Output power and filament hour meters
  • Interlocks: high reflected power, water flow, air flow, cabinet air temperature
  • Indicator Lights: system on, generator ready, applicator ready, filament ready, arc detection, microwave on
OPTIONS:
  • An optional load cell to turn off microwave power at a predetermined weight.
  • IR Pyrometer
  • PLC and Controls upgrades
  • Fire Suppression System
  • Stainless Steel
  • Exhaust Fan
  • Applicator Light
56833 Pilot Microwave System

Product Technical Specifications for the Laboratory/Pilot Microwave Systems
